Rockarmor Gt Hoopless Steel Bullbar Combo - Toyota Hilux N80 Bullbar 2015 -2020

ROCKARMOR GT HOOPLESS STEEL BULLBAR COMBO - TOYOTA HILUX 2015-2020

Experience the unrivaled transformation of your N80 Hilux with the all-new, GT Bull bar from Rockarmor. The bull bar instills a captivating sense of aggression, elevating the appearance of your Hilux.

Equipped with rated recovery points, winch cradle, and high approach angles, you can rest assure the GT bull bar will allow you to tackle any track with confidence!

Features & Specifications:

• Built in 3.2Tonne Rated Recovery Points (Each recovery point) *Soft Shackle Compatible)
• 51mm Top cross tube for maximum frontal protection
• Durable 2.8mm High Quality steel construction for maximum protection
• Designed for high approach angles (great for off-road)
• Built in LED FOG lights & LED Indicator, compatible with factory controls
• Extended Silver Centre Bash Plate (Protects Front)
• ADR Complied Air bag compatible mounting system
• Factory Sensor Compatible
• Side under Protection panels Included
• Twin Slotted Antenna Mounts located on top Cross Tube
• Twin Hi-Lift jack points
• Front Protection Buffers
• Accommodation for a Electric Winch up to 12,000 pound (Built in winch plate)
• Laser cut mounting Holes to accommodate for driving lights (Ability to mount 2 x 9" LED Driving Lights)
• Shot blasted, Chemical Washed (for extra protection against rust) Finished off in a high quality black powder coat finish


ROCKARMOR PHANTOM 9" LED DRIVING LIGHTS

Rockarmor's latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!

ROCKARMOR RECOVERY M8 12,000 Pound Winch

• 5 Year Manufacturers Warranty
• 7.2HP Motor
• IP67 Rated (2 Hours Fully Submersible)
• Wireless Controller (inbuilt receiver)
• Controller with Extension Lead
• Rockarmor Alloy Hawse Fairlead
• Synthetic Winch Rope Pro Link
• Control Box Mounting Bracket
• Hand Saver Strap
• Installation Guide Book

TECHY STUFF

• IP RATING: IP68
• DISTANCE: 1 LUX @ 1400 METRES
• POWER: 396 WATTS PER PAIR
• LED TYPE: 33 X OSRAM LEDS
• COLOUR TEMP: 6500K
• LUMENS: 13,000 EFFECTIVE LUMENS
• FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
• LENS: POLYCARBONATE
• COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
• DAY LIGHT RUNNING LIGHT: BUILT IN

Specification

• Installation Guide Book
• Line Pull:  5,443kgs / 12,000lbs
• Motor: Series Wound DC12V / 7.2HP
• Gear Train: 3 Stage Planetary
• Gear Ratio: 216:
• Free Spooling Clutch with Rotating Gear Ring
• IP67 Rated (2 Hours Fully Submersible)
• Synthetic Winch Rope: 9.5mm x 28 metres
• Wireless Receiver: Built into the Control Box
• Isolator Switch: Built into the Control Box
• Drum Size: 64mm x 224mm
• Weight of Winch: 26kgs
• Mounting Bolt Pattern: 254mm x 114.3mm
• Dimensions: 535 X 162 X 170MM
• Warranty: 5 Years Limited Electrical & Mechanical Combo Wieght:120kg

INSTALLATION

To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.

If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.

We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.

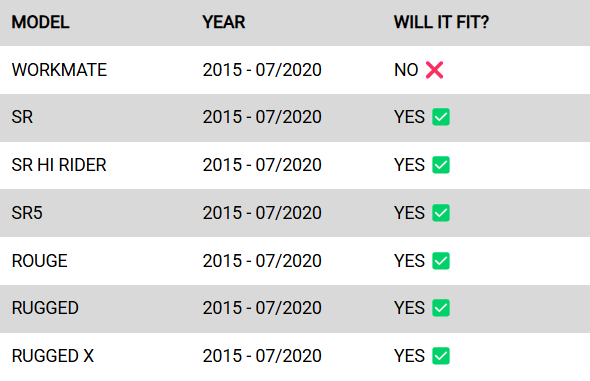

FITMENT GUIDE
